BQ NQ HQ PQ Wireline Core Barrel Overshoot Drilling Rig Components ISO9001:2008

Name: BQ NQ HQ PQ Wireline Core Barrel Overshoot Drilling Rig Components ISO90012008
Brand: xitan
Price: 1 USD

Buy cheap BQ NQ HQ PQ Wireline Core Barrel Overshoot Drilling Rig Components ISO9001:2008 product

Brand Name : xitan

Model Number : Q series Wireline core barrel

Certification : ISO9001:2008

Place of Origin : Jiangsu,China

MOQ : 1Set/Sets

Price : Contact us

Payment Terms : T/T,L/C, D/P, D/A, Western Union, MoneyGram

Packaging Details : As request

Type : BQ,NQ,HQ,PQ

Length : 1.5m，3m

Contact Now

BQ,NQ,HQ,PQ wireline core barrel

Now days wireline core barrel is popular in world mining and also in china. We are proffesional drilling machine and tools manufacture. We have BQ,NQ,HQ and PQ wire line core barrel and accessory. Like

diamond bit, reaming shell, wrench,overshoot, Q rods, and W casing pipe.

Q wireline core barrel Specification

series	Model	Drill bit(mm)		Reamer	Outer tube		Innder tube		Unit weight
series	Model	outer diameter	inner diamter	diameter	outer dia	Inner dia	outer dia	Inner dia	kg/set
Q series core barrel	BQ	59.5	36.5	60	57.2	46	42.9	38.1	45
	NQ	74.6	47.6	75.8	73	60.3	55.6	50	65
	HQ	95.6	63.5	96	92.1	77.8	73	66.7	105
	PQ	122	85	122.6	118	103	95.3	88.9	150

BQ NQ HQ PQ Wireline Core Barrel Overshoot Drilling Rig Components ISO9001:2008

Product Tags:

drilling rig components

oil rig tools

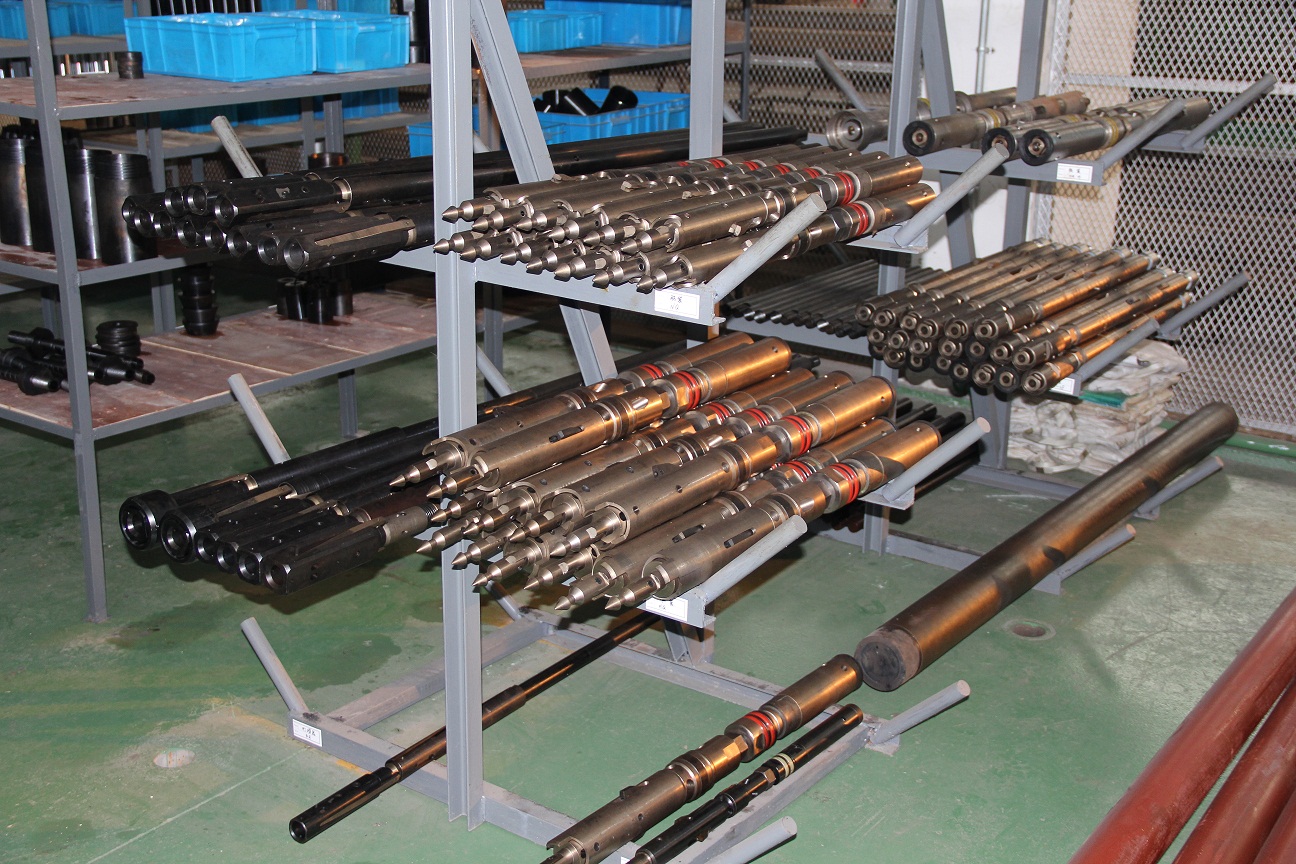

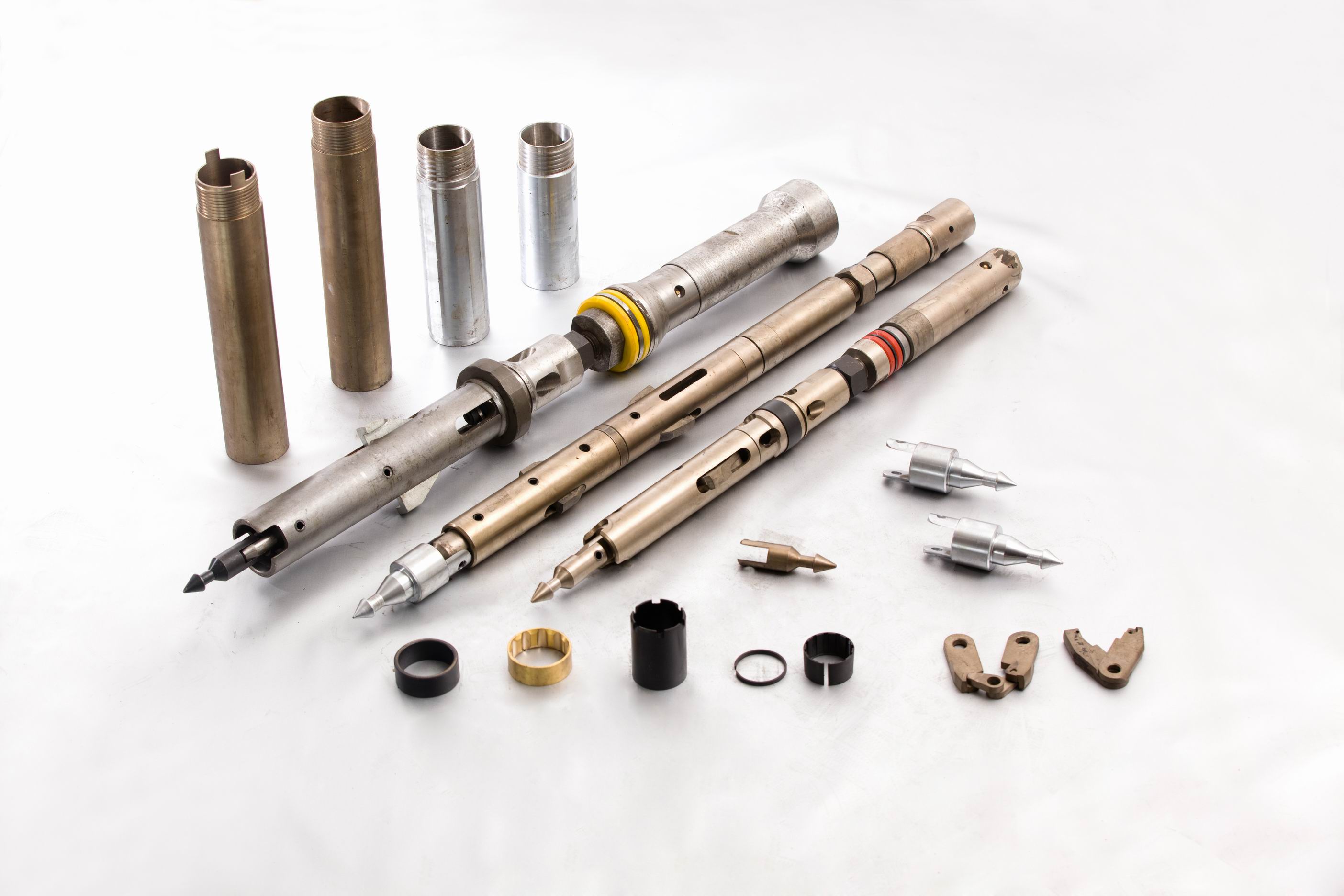

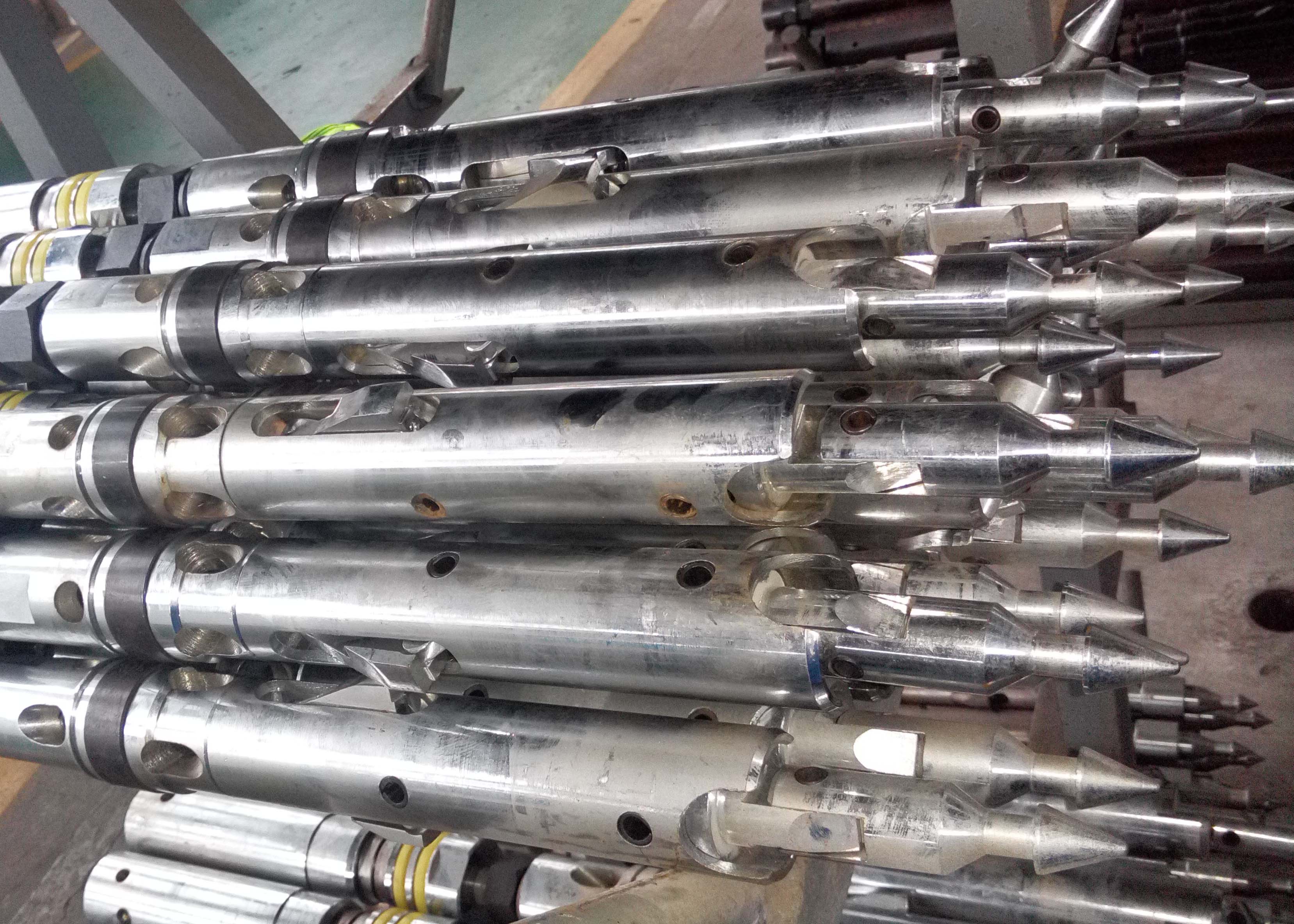

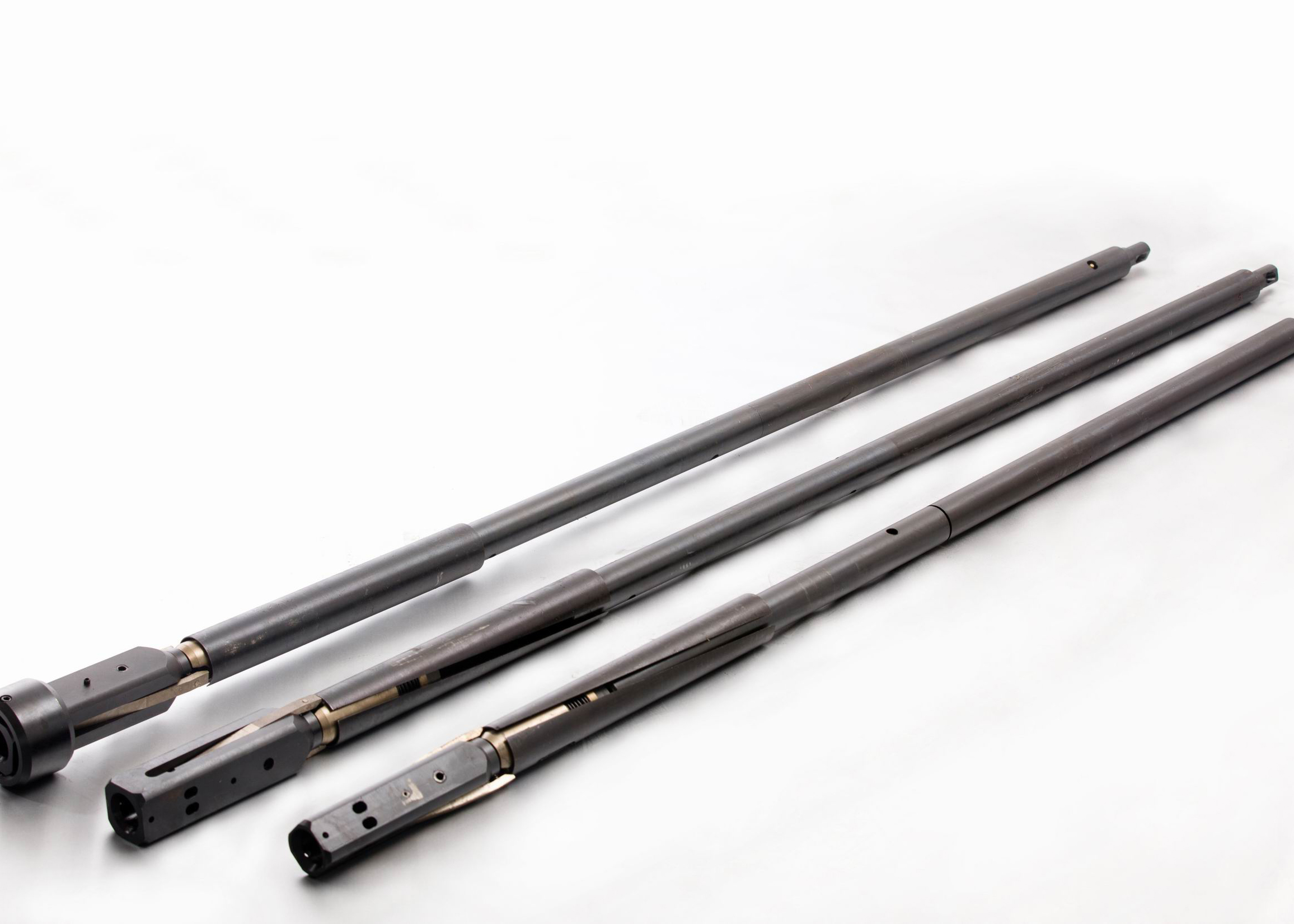

BQ NQ HQ PQ Wireline Core Barrel Overshoot Drilling Rig Components ISO9001:2008 Images
