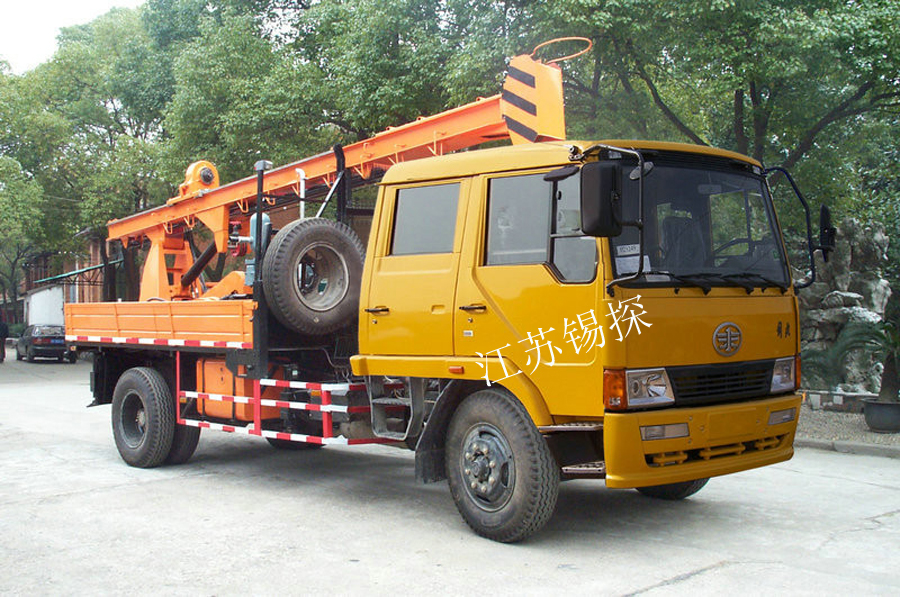

G-1 Truck Mounted Drilling Rig With Stroke 650mm
Specifications:
| Hole depth | 30m | Initial hole dia | 150mm |
| Central opening dia. | 172mm |
| Speed(forward and reverse) | 21;43;52;105;135;272rp |
| Stroke | 650mm |
| Max .lifting capacity | 15KN |
| Max .feeding capacity | 6KN |
| Hoist | Max .lifting capacity | 15KN |
| (single line): |
| Lifting speed: | 0.19;0.38;0.46;0.92;1.18;2.73m/s |
| Power | Diesel engine | 8.82kw,2000rpm |
| Drilling Tower Height | 6.5m |
| Weight(including truck) | 4050kg |
| Truck | JX1050TSGA23 light-duty |
| Dimensions (L×W×H) | 5900×1860×2880mm |
Quick Detail:
1.G-1 can be used in engineering geological exploration, survey and exploration of solid mineral deposit, inspect hole of various concrete structure, blast hole, etc.
2.It also can be used as the core drilling rig with the mud pump, It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving.
3.The rig is a truck mounted top head drive drill, it is mechanical drive and hydraulic fed.
Description:
1.G-1 is mechanic driven and hydraulic fed.
2.It is a truck mounted top head drive drill. It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving .
3.It also can be used as the core drilling rig with the mud pump, It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving.
4.Its design is advanced, reasonable and its operation is easy and reliable.
Applications:
G-1 is mainly used in engineering geological exploration and construction for highway, bridge, dam, and civil, industrial, national defence engineering,as well.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
